NE8FDV-B-TOP | Neutrik
Panel socket, RJ45, Cat 5e, PCB mounting, NE8FDV-B-TOP
Unit Price (€ / pc.)
13.9944 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
13.99 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9944 €
10 pcs.
12.9591 €
25 pcs.
12.0666 €
50 pcs.
10.9361 €
*incl. VAT plus shipping costs
Subject to prior sale

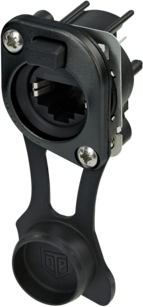

RJ45 Installation socket straight, NE8FDV-B-TOP, Neutrik
Vertical PCB panel mount RJ45 receptacle, combined with sealing kit SE8FD-TOP, max. panel thickness 4 mm, mounting screws included. The etherCON is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications with IP65 rating. The chassis connector is shaped to fit into standardized panels out of the entertainment industry.
Features
- IP65 rated
- Useable with any standard RJ45 plug
- Mountable from the front of the panel
- Uses high impact UV-resistant and gasket materials
- Ground panel connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel socket | |
| Assembly | PCB mounting | |
| Category | Cat 5e | |
| RJ-Version | RJ45 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
