NE8FDP-TOP | Neutrik
Socket, RJ45, 8 pole, 8P8C, Cat 5e, solder connection, flange mounting, NE8FDP-TOP
Unit Price (€ / pc.)
16.2554 € *
Available: 22 pcs.
Leadtime: 2 Weeks **
Total Price:
16.26 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2554 €
50 pcs.
15.1963 €
150 pcs.
14.2800 €
500 pcs.
13.4589 €
*incl. VAT plus shipping costs
**Subject to prior sale

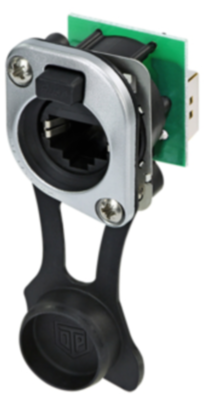

RJ45 receptacle, NE8FDP-TOP, NEUTRIK
RJ45 feedthrough receptacle, combined with sealing kit SE8FD-TOP, D-shape metal flange with the latch lock, mounting screws included. Suitable for panel mount and the installer market.
Features
- Ground panel connection
- Approved latch lock system
- Uses high impact UV-resistant and gasket materials
- Mountable from the front of the panel
Applications
- Pro audio
- Video
- Network applications
- Entertainment industry
Technical specifications
| Pole image | 8P8C | |
| Assembly | flange mounting | |
| RJ-Version | RJ45 | |
| Pin number | 8 pole | |
| Version | socket | |
| Category | Cat 5e | |
| Connection | solder connection |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
