NE8FAH-LR-DAE | Neutrik
Panel socket, RJ45, 8 pole, 8P8C, Cat 5e, solder connection, PCB mounting, NE8FAH-LR-DAE
Unit Price (€ / pc.)
7.1162 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
7.12 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1162 €
10 pcs.
6.5926 €
25 pcs.
6.1404 €
50 pcs.
5.5573 €
*incl. VAT plus shipping costs
Subject to prior sale

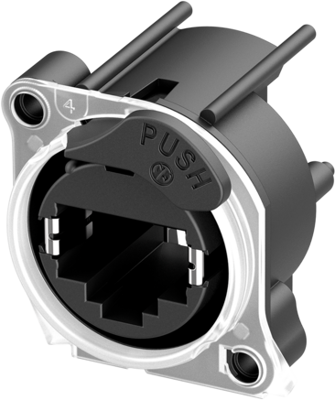

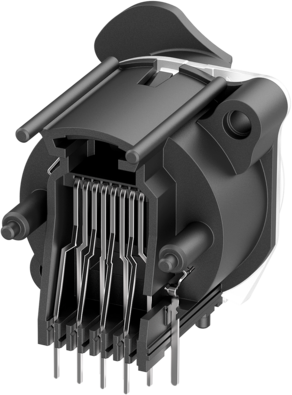

RJ45 Installation socket, NE8FAH-LR-DAE, Neutrik
Horizontal PCB mount RJ45 receptacle, cutout with latch lock, max. panel thickness 3 mm and asymmetric non-metallic push tab. The etherCON is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connector is shaped to fit into standardized panels out of the entertainment industry. More than a connector, the State of the Art receptacle. Round plastic body etherCON PCB mount panel connector, integrating the completely new, patented light ring and asymmetric non-metallic push elements. The all-plastic A-Series offers the most space-saving and cost-effective design. Light ring for status indication and improved ESD performance with asymmetric non-metallic push.
Features
- Most space saving and cost-effective design
- Light ring offers innovative, forward-looking alternative to light pipes
- Improved visibility compared to light pipes
- Attractive signaling and design element
- Vertical space saving compared to standard push tabs
- Easier to use push tab with larger push area
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 8 pole | |
| Pole image | 8P8C | |
| Version | panel socket | |
| Connection | solder connection | |
| Assembly | PCB mounting | |
| Category | Cat 5e | |
| RJ-Version | RJ45 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
