NAC3MPB-1 | Neutrik

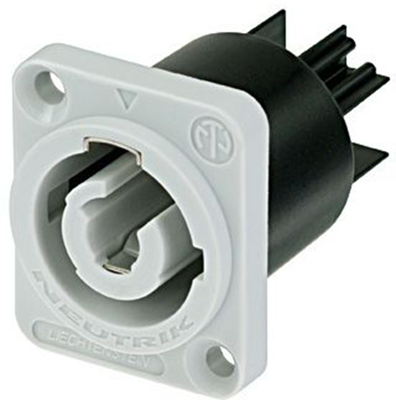

Panel plug, 3 pole, screw mounting, plug-in connection, 2.5 mm², gray, NAC3MPB-1

Order No.: 41F462

EAN: 4099889864298

MPN:

NAC3MPB-1

Image may differ

Key Specification:

Product type panel plug

Pin number 3 pole

Colour gray

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Panel plug, 3 pole, chassis mounting, plug-in connection, 2.5 mm², gray, NAC3MPXXB

Order No.: 41F463

Manufacturer: Neutrik

per pc. 4.1293 € *

Go to product

*plus VAT and shipping costs

Description

Plug, NAC3MPB-1, NEUTRIK

Chassis connector, power-out, 3/16'' flat tab terminals, grey.

The NAC3MPB-1 is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Features

Ergonomic design
Fast and easy twist lock latching system
Extremely robust and reliable
3 contacts for line, neutral and premating safety ground

Technical specifications

Filter	Property	Value
	Switch illuminated	No
	Assembly	screw mounting
	Rated voltage UL/CSA	250 V
	Rated current UL/CSA	20 A
	Cable cross-section	2.5 mm²
	Pin temperature	80 °C
	Fuse holder present	No
	Design	straight
	Colour	gray
	Pin number	3 pole
	Rated voltage IEC	250 V
	Product type	panel plug
	Line filter present	No
	Rated current IEC	20 A
	Type of locking	Yes
	Connection	plug-in connection
	Power switch available	No
