NAC3MPA-1 | Neutrik
Plug, 3 pole, screw mounting, plug-in connection, blue, NAC3MPA-1
Order No.: 41F460
EAN: 4099889864281
MPN:
NAC3MPA-1
This item is no longer available.
As an alternative, we recommend the following item:
Panel plug, 3 pole, chassis mounting, plug-in connection, 2.5 mm², blue, NAC3MPXXA
Order No.: 41F461
Manufacturer: Neutrik
per pc. 4.2721 € *

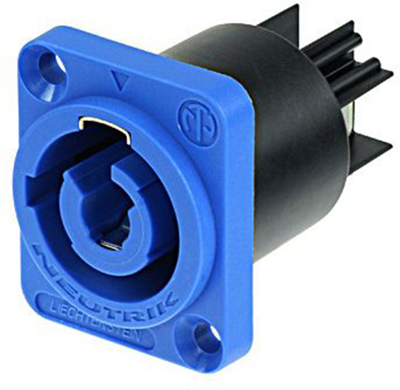

Plug, NAC3MPA-1, NEUTRIK
Chassis connector, power-in, 3/16'' flat tab terminals, blue.
The NAC3MPA-1 is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Features
- Ergonomic design
- Fast and easy twist lock latching system
- Extremely robust and reliable
- 3 contacts for line, neutral and premating safety ground
Technical specifications
| Switch illuminated | No | |
| Colour | blue | |
| Pin temperature | 80 °C | |
| Type of locking | Yes | |
| Rated current UL/CSA | 20 A | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 20 A | |
| Rated voltage IEC | 250 V | |
| Fuse holder present | No | |
| Pin number | 3 pole | |
| Version | plug | |
| Design | straight | |
| Power switch available | No | |
| Connection | plug-in connection | |
| Line filter present | No |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
