NAC3MMXX | Neutrik
Adapter for cable extension, 3 pole, blue/gray, NAC3MMXX
Unit Price (€ / pc.)
29.1074 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
29.11 € *
Price list
Quantity
Price per unit*
1 pcs.
29.1074 €
10 pcs.
27.0249 €
25 pcs.
25.2280 €
50 pcs.
22.9313 €
*incl. VAT plus shipping costs
Subject to prior sale

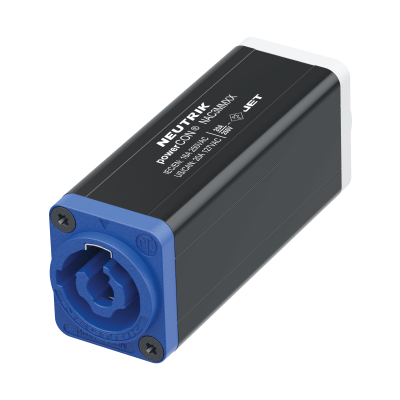

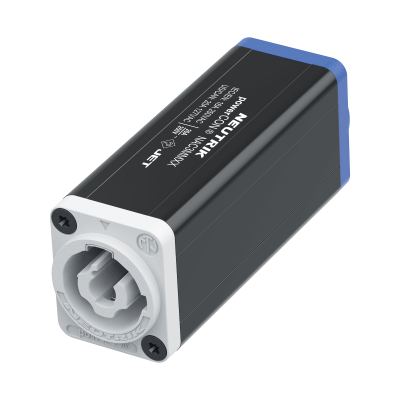

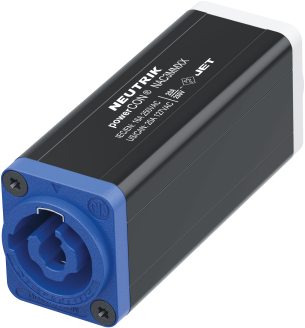

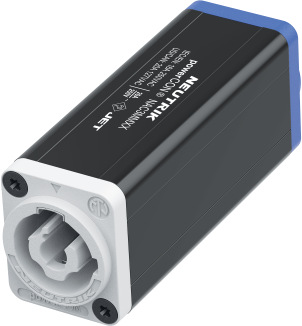

Coupler, NAC3MMXX, Neutrik
CBC powerCON coupler for linking powercables using IEC 60320-1 compliant NEUTRIK powerCON XX series receptacles for power in (NAC3MPXXA) and power out (NAC3MPXXB). The powerCON XX series receptacles (NAC3MPXXA, NAC3MPXXB) are connectors with breaking capacity (CBC) certified according to IEC 60320-1. They are fully compliant to the device standard IEC 62368-1, due to its component.
Features
- Breaking capacity (CBC)
- Twist lock system
- Rugged design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | for cable extension | |
| Product type | adapter | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Line filter present | No | |
| Power switch available | No | |
| Rated current UL/CSA | 20 A | |
| Rated voltage UL/CSA | 127 V | |
| Type of locking | Yes | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Colour | blue/gray | |
| Switch illuminated | No | |
| Fuse holder present | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
