NAC3FX-W-TOP-L | Neutrik

Jack, 3 pole, screw connection, 1.0-2.5 mm², black, NAC3FX-W-TOP-L

Order No.: 41F488
EAN: 7613187013935
MPN:
NAC3FX-W-TOP-L

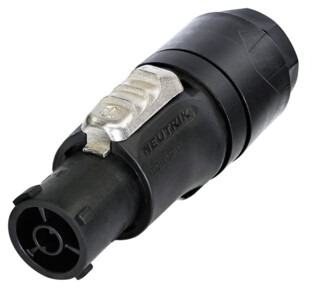

NAC3FX-W-TOP-L Neutrik Device Connectors Image 1

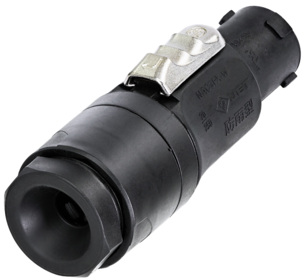

NAC3FX-W-TOP-L Neutrik Device Connectors Image 2

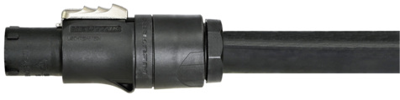

NAC3FX-W-TOP-L Neutrik Device Connectors Image 3

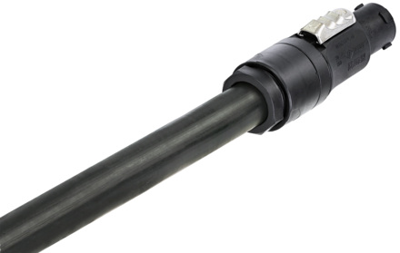

NAC3FX-W-TOP-L Neutrik Device Connectors Image 4
Image may differ

No longer available from manufacturer

Unit Price (€ / pc.)
11.0670 € *
Available: 3 pcs.
Total Price:
11.07 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0670 €
10 pcs.
10.1864 €
50 pcs.
9.2701 €
100 pcs.
8.3419 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connector, NAC3FX-W-TOP-L, NEUTRIK

Locking female cable connector for big power cord diameters 10-16 mm. NAC3FX-W-TOP-L is a single phase connector for outdoor applications with breaking capacity (CBC), it can be connected or disconnected under load or live.

Features

  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Extremely robust and reliable cable retention
  • TOP True Outdoor Protection
  • Single phase connector with Circuit Breaking Capability
Technical specifications
Filter Property Value
Switch illuminated No
Rated voltage UL/CSA 250 V
Rated current UL/CSA 20 A
Cable cross-section 1.0-2.5 mm²
Cable diameter 10 to 16 mm
Pin temperature 80 °C
Fuse holder present No
Design straight
Colour black
Pin number 3 pole
Rated voltage IEC 250 V
Product type jack
Line filter present No
Rated current IEC 16 A
Type of locking Yes
Connection screw connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin GB
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
