NAC3FPX-TRUE1 | Neutrik

Panel socket, 3 pole, cable assembly, plug-in connection, 2.5 mm², NAC3FPX-TRUE1

Order No.: 39F1522
EAN: 7613187027741
MPN:
NAC3FPX-TRUE1
Series: powerCON

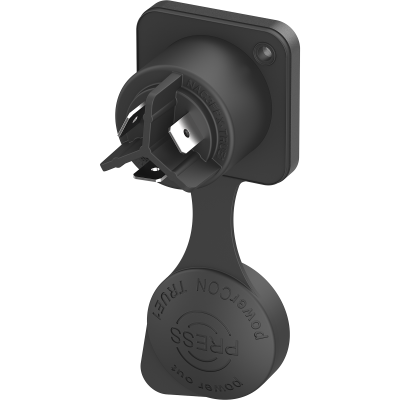

NAC3FPX-TRUE1 Neutrik Device Connectors Image 1

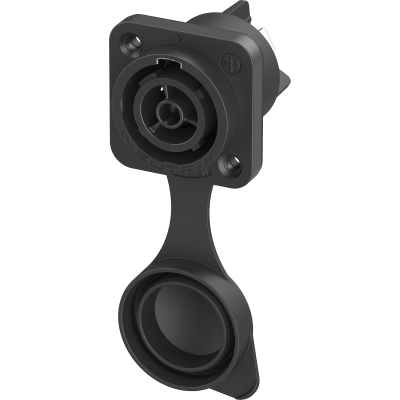

NAC3FPX-TRUE1 Neutrik Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.2709 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
7.27 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2709 €
10 pcs.
6.7711 €
50 pcs.
6.3427 €
100 pcs.
5.9619 €
*incl. VAT plus shipping costs
Subject to prior sale

Mains connector, NAC3FPX-TRUE1, Neutrik

The powerCON TRUE1 airtight is a locking true mains connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1 product group and belongs to our premium powerCON-TRUE1 line. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight is the choice for professionals who require absolute reliability. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. With the powerCON TRUE1 airtight, you can count on a secure connection, even in the most extreme conditions.

Features

  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Extremely robust and reliable
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist lock system
Technical specifications
Rated voltage UL/CSA 250 V
Rated voltage IEC 250 V
Connection plug-in connection
Version panel socket
Cable cross-section 2.5 mm²
Design straight
Fuse holder present No
Line filter present No
Pin number 3 pole
Rated current UL/CSA 20 A
Power switch available No
Switch illuminated No
Assembly cable assembly
Rated current IEC 16 A
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
