NAC3FCB | Neutrik

Jack, 3 pole, cable assembly, screw connection, 2.5 mm², gray, NAC3FCB

Order No.: 41F452

EAN: 4099889864250

MPN:

NAC3FCB

Image may differ

Key Specification:

Product type jack

Pin number 3 pole

Colour gray

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Jack, 2 pole + PE, screw connection, 1.5-2.5 mm², black, NAC3FXXB-W-S

Order No.: 41F442

Manufacturer: Neutrik

per pc. 10.2340 € *

Go to product

*incl. VAT plus shipping costs

Description

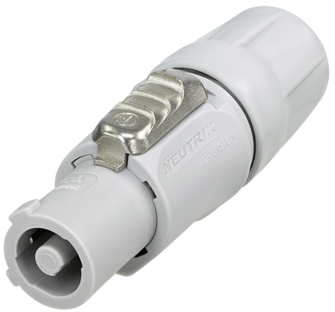

Jack, NAC3FCB, NEUTRIK

Lockable cable connector, power-out, screw terminals, grey.

The NAC3FCB is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Features

Ergonomic design
Fast and easy twist lock latching system
Extremely robust and reliable
Improved kink protection by two-component bushing

Technical specifications

Filter	Property	Value
	Rated voltage IEC	250 V
	Pin temperature	80 °C
	Power switch available	No
	Colour	gray
	Assembly	cable assembly
	Rated voltage UL/CSA	250 V
	Rated current UL/CSA	20 A
	Cable diameter	6 to 15 mm
	Fuse holder present	No
	Design	straight
	Connection	screw connection
	Switch illuminated	No
	Product type	jack
	Pin number	3 pole
	Type of locking	Yes
	Rated current IEC	20 A
	Cable cross-section	2.5 mm²
	Line filter present	No
