NAC3FCA | Neutrik
Jack, 3 pole, cable assembly, screw connection, 2.5 mm², blue, NAC3FCA
Order No.: 41F450
EAN: 4099889864243
MPN:
NAC3FCA
This item is no longer available.
As an alternative, we recommend the following item:
Jack, 2 pole + PE, screw connection, 1.5-2.5 mm², black, NAC3FXXA-W-S
Order No.: 41F440
Manufacturer: Neutrik
per pc. 8.8179 € *

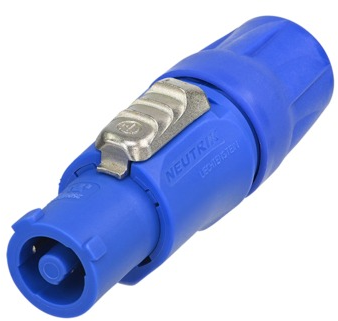

Jack, NAC3FCA, NEUTRIK
Lockable cable connector, power-in, screw terminals, blue.
The NAC3FCA is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Features
- Ergonomic design
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Improved kink protection by two-component bushing
Technical specifications
| Switch illuminated | No | |
| Colour | blue | |
| Pin temperature | 80 °C | |
| Cable diameter | 6 to 15 mm | |
| Type of locking | Yes | |
| Rated current UL/CSA | 20 A | |
| Assembly | cable assembly | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 20 A | |
| Rated voltage IEC | 250 V | |
| Fuse holder present | No | |
| Cable cross-section | 2.5 mm² | |
| Pin number | 3 pole | |
| Version | jack | |
| Design | straight | |
| Power switch available | No | |
| Connection | screw connection | |
| Line filter present | No |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
