NAC3FC-HC | Neutrik
Jack IEC 62368-1, 3 pole, cable assembly, screw connection, 2.5-6.0 mm², black, NAC3FC-HC
Unit Price (€ / pc.)
26.1086 € *
Available: 11 pcs.
Total Price:
26.11 € *
Price list
Quantity
Price per unit*
1 pcs.
26.1086 €
10 pcs.
24.2522 €
25 pcs.
22.6338 €
50 pcs.
20.5751 €
*incl. VAT plus shipping costs
Subject to prior sale

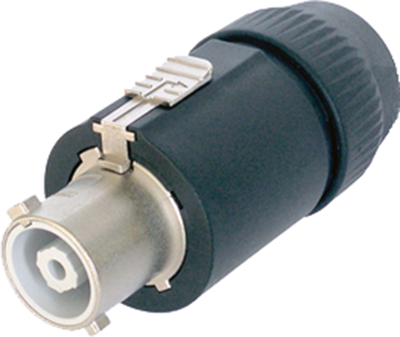

Jack, NAC3FC-HC, NEUTRIK
The NAC3FC-HC is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations.
Features
- Fast and easy locking system to prevent unintentional disengagement
- Premating contact for protective earth
- Extremely robust and reliable
- Excellent cable handling and protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | jack | |
| Pin number | 3 pole | |
| IEC designation | IEC 62368-1 | |
| Colour | black | |
| Connection | screw connection | |
| Assembly | cable assembly | |
| Design | straight | |
| Cable cross-section | 2.5-6.0 mm² | |
| Cable diameter | 8 to 20 mm | |
| Power switch available | No | |
| Switch illuminated | No | |
| Fuse holder present | No | |
| Line filter present | No | |
| Type of locking | Yes | |
| Rated voltage IEC | 250 V | |
| Rated voltage UL/CSA | 250 V | |
| Rated current IEC | 32 A | |
| Rated current UL/CSA | 32 A | |
| Pin temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
