NAC3F-TRUE1-S | Neutrik
Jack, 2 pole + PE, 1.5-2.5 mm², black, NAC3F-TRUE1-S
Unit Price (€ / pc.)
8.9488 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
8.95 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9488 €
10 pcs.
8.2824 €
25 pcs.
7.7112 €
50 pcs.
6.9972 €
*incl. VAT plus shipping costs
Subject to prior sale

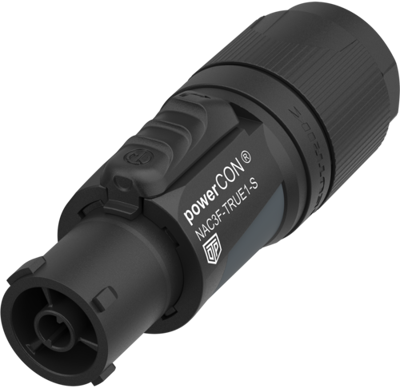

Power connector, NAC3F-TRUE1-S, Neutrik
The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features
- Heavy duty sealed power connector for harsh and demanding environment
- Lockable single phase connector
- Easy and reliable twist lock system
- Uses high impact UV-resistant materials
- Extremely robust and reliable
- True mains connector with breaking capacity (CBC)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | straight | |
| Product type | jack | |
| Rated voltage IEC | 250 V | |
| Rated current UL/CSA | 20 A | |
| Rated current IEC | 16 A | |
| Pin number | 2 pole + PE | |
| Rated voltage UL/CSA | 250 V | |
| Cable diameter | 6 to 12 mm | |
| Type of locking | Yes | |
| Colour | black | |
| Cable cross-section | 1.5-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
