NBTC75BLI4 | Neutrik

BNC plug 75 Ω, RG-179B/U, crimp connection, straight, NBTC75BLI4

Order No.: 78F1714
EAN: 4099889830903
MPN:
NBTC75BLI4
Series: BNC

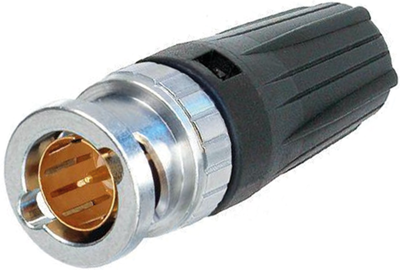

NBTC75BLI4 Neutrik Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
6.3546 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
6.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.3546 €

BNC connectors for video signals, type NEUTRIK NBNC../NBTC.

Precision lathed connectors, 75 ohm, can be used up to 3.0 GHz for digital and analog video signal transmission, VSWR max. 1.22 (3.0 GHz); Rated voltage: 500 VAC (type NBTC 75 BLI 4 = 250 VAC), gold-plated contacts, pin and sleeve crimped, e.g., with crimp tool HX-R-BNC with DIE-R-BNC-PG/DIE-R-BNC insert, surface hardened with optalloy, bayonet lock with included cable bushing. Useful life: min. 1000 insertion/removal cycles. Operating temperatures: –30 to +85 °C.

Technical attributes (type, for cable type): NBTC 75 BLI 4, RG 179

Technical specifications
Impedance 75 Ω
Connector BNC
Cable Group RG-179B/U
Design straight
Contact material brass
Contact connection crimp connection
Version plug
Logistics
Country of origin LI
Customs tariff number 85366910
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
