NBTB75INN5 | Neutrik
BNC panel socket 75 Ω, Draka 0.41/1.9 AF, Draka 753-1104, Draka 755-1101, Draka 755-1103, Extron BNC 5 HR(P), solder connection, straight, NBTB75INN5
Order No.: 39F1440
EAN: 7613187002847
MPN:
NBTB75INN5
Unit Price (€ / pc.)
10.5434 € *
Standard delivery time from the manufacturer is: 1 Week

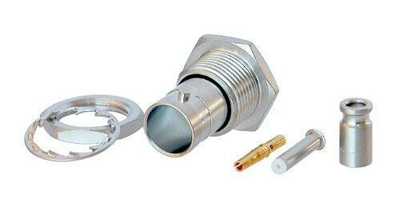

BNC cable jack, NBTB75INN5, Neutrik
BNC cable jacks for panel mount offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.
Features
- Gold plated center contact
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- True 75 Ω design meets the stringent HD requirements
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 75 Ω | |
| Connector | BNC | |
| Cable Group | Draka 0.41/1.9 AF, Draka 753-1104, Draka 755-1101, Draka 755-1103, Extron BNC 5 HR(P) | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | solder connection | |
| Version | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
