Neosid

00 6164 06 | Neosid

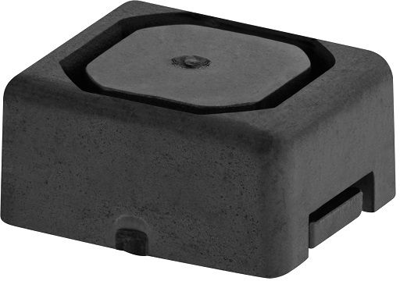

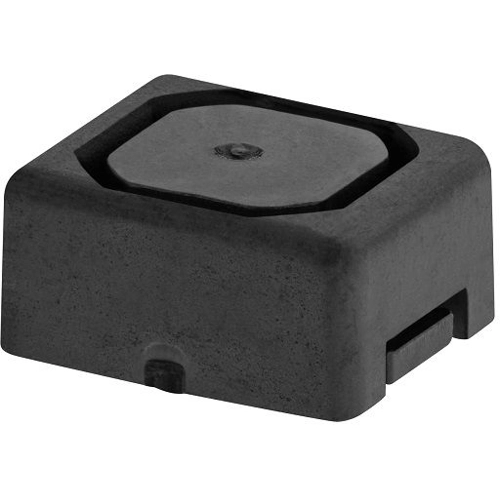

Power choke, SMD, 10 µH, 750 mA, 00 6164 06

default S
front S
default L
front L
Total price
(1.82 € * / pcs.)
5.46 €
Available: 2,214 pcs.
Quantity
Price per unit*
3 pcs.
1.82 €
15 pcs.
1.64 €
75 pcs.
1.50 €
400 pcs.
1.38 €
800 pcs.
1.32 €
*incl. VAT plus shipping costs
Show 3 variants
Description

Product by Neosid at Bürklin Elektronik

Power inductor, 00 6164 06, NEOSID

The 00 6164 06 is a SMT power inductor. It is used for energy storage devices, in switched-mode power devices to produce DC current.

Features

  • Compact design
  • Low height
  • Low DC resistance
  • For reflow and vapor phase soldering

Applications

  • Backlight
  • DC/DC-Transformer
  • Decoupling in RF- and IF-circuits

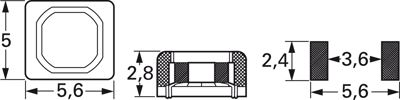

Technical specifications
Version power choke
Design SMD
Width 5 mm
DC current 0.75 A
DC resistance 100 Ω
Quality Q Q 60
Height 2.8 mm
Inductance 0.01 mH
Length 5.6 mm
Measuring frequency 0.5 MHz
Saturation current 0.75 A
Tolerance ±20 %
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85045000
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 3 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Power choke, SMD, 10 µH, 750 mA, 00 6164 06
Order No.:
 74D4661
Manufacturer:
 Neosid
Manufacturer SKU
 00 6164 06
3 pcs.
1.82 €
15 pcs.
1.64 €
75 pcs.
1.50 €
400 pcs.
1.38 €
800 pcs.
1.32 €
5.46 € *
Available: 2,214 pcs.
SMD
power choke
5 mm
5.6 mm
±20 %
2.8 mm
0.01 mH
0.75 A
100 Ω
Suppressor inductor, SMD, 47 µH, 350 mA, 00 6164 10
Order No.:
 74D4663
Manufacturer:
 Neosid
Manufacturer SKU
 00 6164 10
2500 pcs.
1.38 €
0.00 € *
Currently not in stock, we will order for you
SMD
Suppressor inductor
5 mm
5.6 mm
±20 %
2.8 mm
0.047 mH
0.35 A
0.36 Ω
Suppressor inductor, SMD, 1 mH, 75 mA, 00 6164 18
Order No.:
 74D4667
Manufacturer:
 Neosid
Manufacturer SKU
 00 6164 18
2500 pcs.
1.32 €
0.00 € *
Currently not in stock, we will order for you
SMD
Suppressor inductor
5 mm
5.6 mm
±20 %
2.8 mm
1 mH
0.075 A
7.8 Ω
