00 6122 28 | Neosid

Suppressor choke, radial, 2.2 mH, 110 mA, 00 6122 28

Order No.: 75D6104
EAN: 4099889040593
MPN:
00 6122 28
Series: Sd75
00 6122 28 Neosid Fixed Inductors Image 1
00 6122 28 Neosid Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
4.9742 € *
Next delivery: 2,524 pcs. on 2025-09-05
Total Price:
4.97 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9742 €
10 pcs.
3.0940 €
50 pcs.
2.7727 €
250 pcs.
2.3800 €
1000 pcs.
2.0587 €
*incl. VAT plus shipping costs
Subject to prior sale

Suppressor inductor, 00 6122 28, NEOSID

The 00 6122 28 is a fixed value choke inductor with or without a ferromagnetic core, used to block alternating current (AC) in a circuit by limiting the rate of change over a specified frequency range, while allowing passage of lower frequency AC or direct current (DC).

Features

  • Solderability as per DIN IEC 68-2-20 Ta: 235°C, 5 sec.

Applications

  • Decoupling of high and low frequency circuits
  • Telecommunications
  • Video equipment
  • Electronic data processing systems
Technical specifications
Filter Property Value
DC resistance 21 Ω
Quality Q Q 55
Measuring frequency 200 kHz

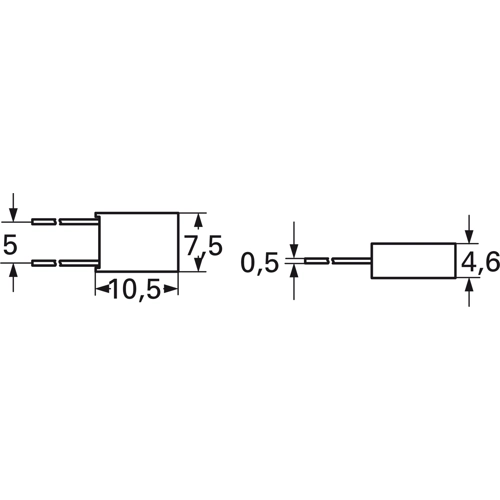

Width 7.5 mm
Inductance 2.2 mH
Version suppressor choke
Height 4.6 mm
DC current 110 mA
Tolerance ±5 %
Length 10.5 mm
Design radial
Logistics
Property Value
Country of origin DE
Customs tariff number 85045000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
