00 6122 04 | Neosid

Suppressor choke, radial, 22 µH, 560 mA, 00 6122 04

Order No.: 75D6056
EAN: 4099889040470
MPN:
00 6122 04
Series: Sd75

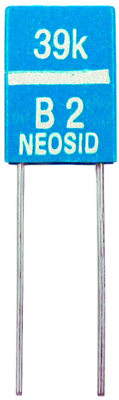

00 6122 04 Neosid Fixed Inductors Image 1
00 6122 04 Neosid Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
4.5577 € *
Available: 262 pcs.
Total Price:
4.56 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5577 €
10 pcs.
2.8560 €
50 pcs.
2.4990 €
250 pcs.
2.1777 €
*incl. VAT plus shipping costs
Subject to prior sale

Suppressor inductor, 00 6122 04, NEOSID

The 00 6122 04 is a fixed value choke inductor with or without a ferromagnetic core, used to block alternating current (AC) in a circuit by limiting the rate of change over a specified frequency range, while allowing passage of lower frequency AC or direct current (DC).

Features

  • Solderability as per DIN IEC 68-2-20 Ta: 235°C, 5 sec.

Applications

  • Decoupling of high and low frequency circuits
  • Telecommunications
  • Video equipment
  • Electronic data processing systems
Technical specifications
Filter Property Value
Length 10.5 mm
Inductance 22 µH
Height 4.6 mm
Quality Q Q 60
Version suppressor choke
Design radial
Tolerance ±5 %
DC current 560 mA
DC resistance 0.85 Ω
Width 7.5 mm
Measuring frequency 1 MHz
Logistics
Property Value
Customs tariff number 85045000
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
