00 6109 24 | Neosid

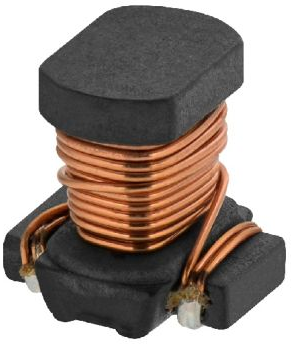

Suppressor choke, SMD 1206, 100 µH, 310 mA, 00 6109 24
Unit Price (€ / pc.)
0.9639 € *
Available: 452 pcs.
Total Price:
9.64 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9639 €
50 pcs.
0.8449 €
250 pcs.
0.7378 €
1000 pcs.
0.6426 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD power inductor, type Neosid Ms 50.
For reflow and vapor-phase soldering, suitable for automatic assembly, low DC resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 310 mA | |
| Tolerance | ±10 % | |
| Saturation current | 310 mA | |

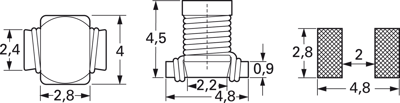

| Design | SMD 1206 | |
| Width | 2.8 mm | |
| Height | 4.5 mm | |
| Inductance | 100 µH | |
| Version | suppressor choke | |
| Length | 4 mm | |
| DC resistance | 1 Ω | |
| Measuring frequency | 8.5 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
