00 6109 20 | Neosid
Suppressor choke, SMD, 47 µH, 450 mA, 00 6109 20
Unit Price (€ / pc.)
1.1662 € *
Available: 227 pcs.
Total Price:
11.66 € *
Price list
Quantity
Price per unit*
10 pcs.
1.1662 €
50 pcs.
1.0234 €
250 pcs.
0.8925 €
1000 pcs.
0.7735 €
2500 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

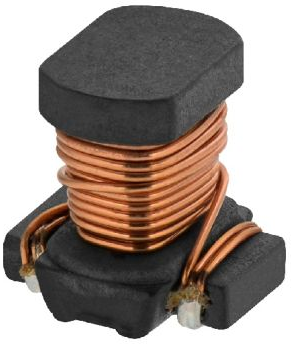

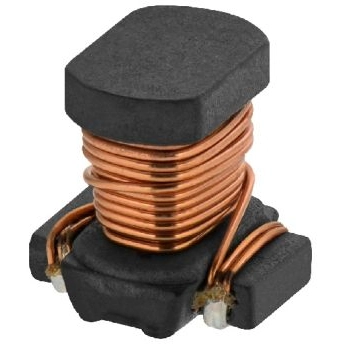

SMD power inductor, type Neosid Ms 50.
For reflow and vapor-phase soldering, suitable for automatic assembly, low DC resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 47 µH | |
| Saturation current | 450 mA | |
| DC current | 450 mA | |

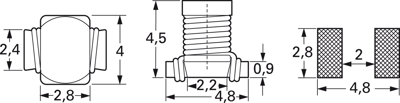

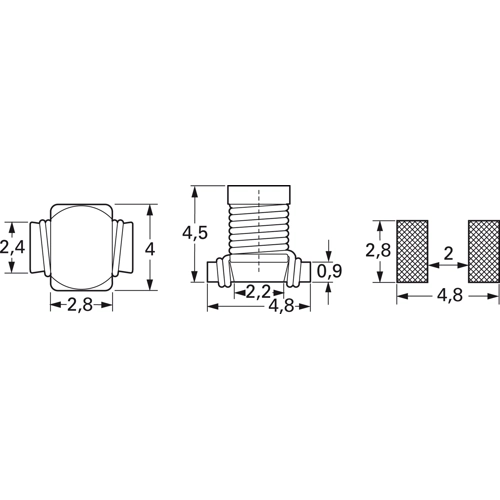

| Width | 2.8 mm | |
| Length | 4 mm | |
| Design | SMD | |
| DC resistance | 480 mΩ | |
| Version | suppressor choke | |
| Height | 4.5 mm | |
| Tolerance | ±10 % | |
| Measuring frequency | 12 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
