00 6109 08 | Neosid
Suppressor choke, SMD, 4.7 µH, 1.4 A, 00 6109 08
Unit Price (€ / pc.)
1.2376 € *
Available: 1,330 pcs.
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
1.1662 €
50 pcs.
1.0234 €
250 pcs.
0.8925 €
1000 pcs.
0.7735 €
2500 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

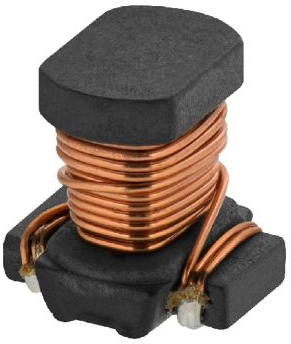

SMD power inductor, type Neosid Ms 50.
For reflow and vapor-phase soldering, suitable for automatic assembly, low DC resistance

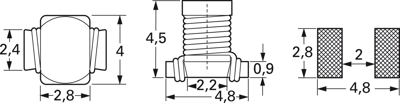

Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC resistance | 50 mΩ | |
| Measuring frequency | 45 MHz | |
| Width | 2.8 mm | |
| Inductance | 4.7 µH | |
| Version | suppressor choke | |
| Height | 4.5 mm | |
| DC current | 1.4 A | |
| Tolerance | ±10 % | |
| Length | 4 mm | |
| Saturation current | 1.4 A | |
| Design | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
