00 6077 12 | Neosid
Suppressor choke, SMD, 2.2 µH, 2 A, 00 6077 12
Unit Price (€ / pc.)
1.4875 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.46 € *
Price list
Quantity
Price per unit*
3 pcs.
1.4875 €
15 pcs.
1.3328 €
75 pcs.
1.2138 €
400 pcs.
1.1067 €
800 pcs.
1.0234 €
*incl. VAT plus shipping costs
Subject to prior sale

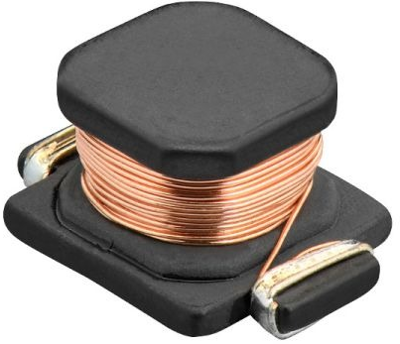

SMD power inductor, type Neosid Ms 42.
For reflow and vapor-phase soldering, suitable for automatic assembly, low DC resistance
Technical specifications
| DC current | 2 A | |
| Saturation current | 2 A | |

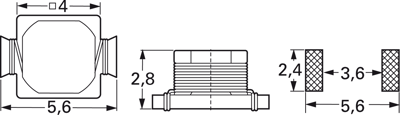

| Width | 4 mm | |
| Height | 2.8 mm | |
| Length | 5.6 mm | |
| DC resistance | 45 mΩ | |
| Measuring frequency | 10 kHz | |
| Version | suppressor choke | |
| Design | SMD | |
| Tolerance | ±10 % | |
| Inductance | 2.2 µH |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85045000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
