00 5535 24 | Neosid

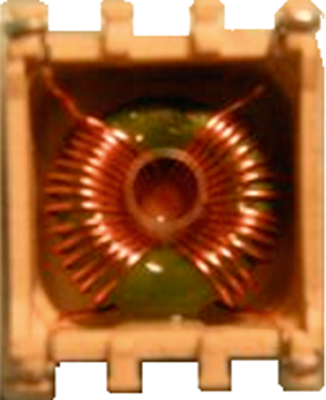

Toroidal transformer, 120 µH, 30 mΩ, 00 5535 24
Unit Price (€ / pc.)
3.2606 € *
Next delivery: 188 pcs. on 2025-10-10
Total Price:
3.26 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2606 €
10 pcs.
2.8560 €
100 pcs.
2.5109 €
250 pcs.
2.4157 €
1000 pcs.
2.2610 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD transformer chokes, type Neosid SM-R6.
Current-compensated toroidal choke, suitable for pulse transformers, for electrical isolation, voltage converters, RF transformers etc

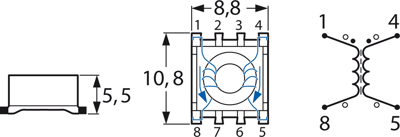

Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC resistance | 30 mΩ | |
| max. operating temperature | 125 °C | |
| Width | 8.8 mm | |
| min. operating temperature | -40 °C | |
| Inductance | 120 µH | |
| Height | 5.5 mm | |
| Product type | toroidal transformer | |
| Length | 10.8 mm | |
| Design | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
