83201230 | murrplastik

Cable protection conduit, inside Ø 35.5 mm, outside Ø 42.3 mm, BR 310 mm, PP, black, 83201230

Order No.: 47P1304
EAN: 4045005231345
MPN:
83201230
EW-R-PP M40/P36 SCHWARZ
Series: EW-R-PP

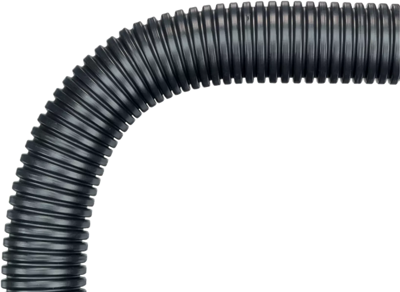

83201230 murrplastik Protective Tubes Image 1

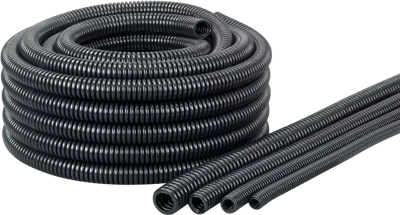

83201230 murrplastik Protective Tubes Image 2

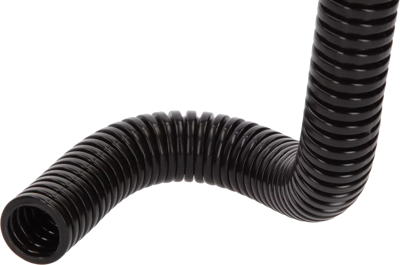

83201230 murrplastik Protective Tubes Image 3
83201230 murrplastik Protective Tubes Image 4
Image may differ
Unit Price (€ / mtr.)
3.213 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
80.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 mtr.
3.213 €

Cable protection conduit, 83201230, murrplastik

The EW-R-PP cable protection conduits are made of specially modified as well as elaborately processed recycled polypropylene. EW-R-PP cable protection conduits are characterized by excellent chemical resistance and good impact resistance.

Features

  • Combines environmental protection and quality
  • Flexible conduit for simple dynamic applications
  • Medium mechanical load
  • UV resistant
  • For mechanical engineering and chemical plants
Technical specifications
Filter Property Value
Material PP
max. operating temperature 130 °C
Nominal width 36 mm
Outer diameter 42.3 mm
min. operating temperature -40 °C
Inner diameter 35.5 mm
Bending radius 310 mm
Colour black
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
