83201222 | murrplastik

Cable protection conduit, inside Ø 23.1 mm, outside Ø 28.3 mm, BR 230 mm, PP, black, 83201222

Order No.: 47P1301
EAN: 4045005029959
MPN:
83201222
EW-R-PP M25/P21S SCHWARZ
Series: EW-R-PP

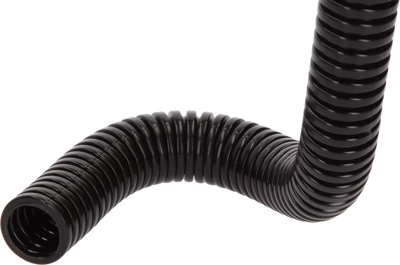

83201222 murrplastik Protective Tubes Image 1
83201222 murrplastik Protective Tubes Image 2
83201222 murrplastik Protective Tubes Image 3
83201222 murrplastik Protective Tubes Image 4
Image may differ
Unit Price (€ / mtr.)
1.9040 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
190.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
1.9040 €

Cable protection conduit, 83201222, murrplastik

The EW-R-PP cable protection conduits are made of specially modified as well as elaborately processed recycled polypropylene. EW-R-PP cable protection conduits are characterized by excellent chemical resistance and good impact resistance.

Features

  • Combines environmental protection and quality
  • Flexible conduit for simple dynamic applications
  • Medium mechanical load
  • UV resistant
  • For mechanical engineering and chemical plants
Technical specifications
Filter Property Value
max. operating temperature 130 °C
min. operating temperature -40 °C
Colour black
Outer diameter 28.3 mm
Material PP
Bending radius 230 mm
Inner diameter 23.1 mm
Nominal width 23 mm
Logistics
Property Value
Customs tariff number 39173200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
