83201220 | murrplastik

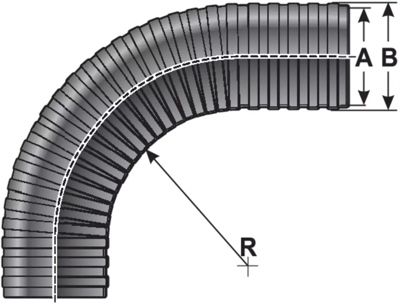

Cable protection conduit, inside Ø 22.3 mm, outside Ø 28.3 mm, BR 230 mm, PP, black, 83201220

Order No.: 47P1300
EAN: 4045005223685
MPN:
83201220
EW-R-PP M25/P21 SCHWARZ
Series: EW-R-PP

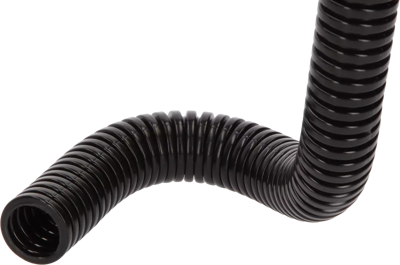

83201220 murrplastik Protective Tubes Image 1
83201220 murrplastik Protective Tubes Image 2
83201220 murrplastik Protective Tubes Image 3
83201220 murrplastik Protective Tubes Image 4
Image may differ
Unit Price (€ / mtr.)
1.9040 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
190.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
1.9040 €

Cable protection conduit, 83201220, murrplastik

The EW-R-PP cable protection conduits are made of specially modified as well as elaborately processed recycled polypropylene. EW-R-PP cable protection conduits are characterized by excellent chemical resistance and good impact resistance.

Features

  • Combines environmental protection and quality
  • Flexible conduit for simple dynamic applications
  • Medium mechanical load
  • UV resistant
  • For mechanical engineering and chemical plants
Technical specifications
Filter Property Value
Material PP
max. operating temperature 130 °C
Nominal width 23 mm
Outer diameter 28.3 mm
min. operating temperature -40 °C
Inner diameter 22.3 mm
Bending radius 230 mm
Colour black
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
