83201052 | murrplastik

Cable protection conduit, inside Ø 9.7 mm, outside Ø 12.9 mm, BR 80 mm, PP, black, 83201052

Order No.: 47P1281
EAN: 4045005227270
MPN:
83201052
EW-PP M12/P09 SCHWARZ
Series: EW-PP

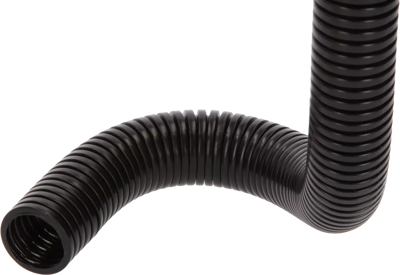

83201052 murrplastik Protective Tubes Image 1
83201052 murrplastik Protective Tubes Image 2
83201052 murrplastik Protective Tubes Image 3
83201052 murrplastik Protective Tubes Image 4
Image may differ
Unit Price (€ / mtr.)
1.0829 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
54.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 mtr.
1.0829 €

Cable protection conduit, 83201052, murrplastik

The self-extinguishing EW-PP cable protection conduits are made of specially modified polypropylene. EW-PP cable protection conduits are characterised by excellent chemical resistance and good impact resistance.

Applications

  • Plant engineering
  • Mechanical engineering
  • Chemical plants
Technical specifications
Filter Property Value
Material PP
max. operating temperature 130 °C
Nominal width 10 mm
Outer diameter 12.9 mm
min. operating temperature -40 °C
Inner diameter 9.7 mm
Bending radius 80 mm
Colour black
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
