83201028 | murrplastik

Cable protection conduit, inside Ø 89.6 mm, outside Ø 106.3 mm, BR 800 mm, PP, gray, 83201028

Order No.: 47P1279
EAN: 4045005025715
MPN:
83201028
EW-PP 95 JUMBO GRAU
Series: EW-PP

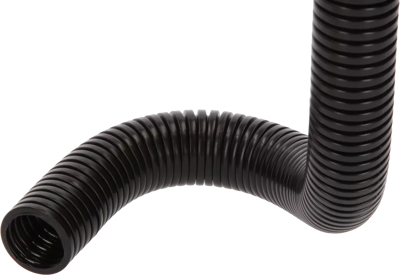

83201028 murrplastik Protective Tubes Image 1
83201028 murrplastik Protective Tubes Image 2
83201028 murrplastik Protective Tubes Image 3
83201028 murrplastik Protective Tubes Image 4
Image may differ
Unit Price (€ / mtr.)
21.8960 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
218.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 mtr.
21.8960 €

Cable protection conduit, 83201028, murrplastik

The self-extinguishing EW-PP cable protection conduits are made of specially modified polypropylene. EW-PP cable protection conduits are characterised by excellent chemical resistance and good impact resistance.

Applications

  • Plant engineering
  • Mechanical engineering
  • Chemical plants
Technical specifications
Filter Property Value
Material PP
max. operating temperature 130 °C
Nominal width 95 mm
Outer diameter 106.3 mm
min. operating temperature -40 °C
Inner diameter 89.6 mm
Bending radius 800 mm
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
