83201014 | murrplastik

Cable protection conduit, inside Ø 12.1 mm, outside Ø 15.7 mm, BR 100 mm, PP, gray, 83201014

Order No.: 47P1273
EAN: 4045005201300
MPN:
83201014
EW-PP M16/P11 GRAU
Series: EW-PP

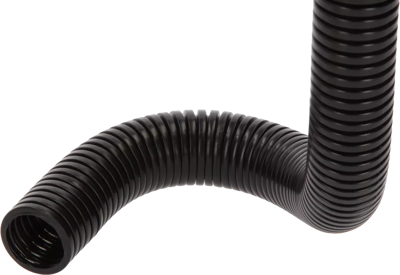

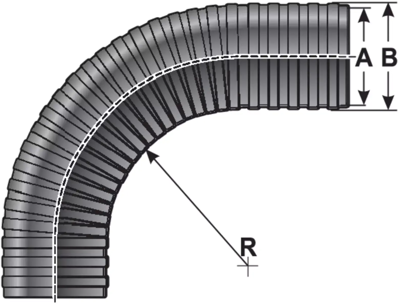

83201014 murrplastik Protective Tubes Image 1
83201014 murrplastik Protective Tubes Image 2
83201014 murrplastik Protective Tubes Image 3
83201014 murrplastik Protective Tubes Image 4
Image may differ
Unit Price (€ / mtr.)
1.5708 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
78.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 mtr.
1.5708 €

Cable protection conduit, 83201014, murrplastik

The self-extinguishing EW-PP cable protection conduits are made of specially modified polypropylene. EW-PP cable protection conduits are characterised by excellent chemical resistance and good impact resistance.

Applications

  • Plant engineering
  • Mechanical engineering
  • Chemical plants
Technical specifications
Filter Property Value
Material PP
max. operating temperature 130 °C
Nominal width 12 mm
Outer diameter 15.7 mm
min. operating temperature -40 °C
Inner diameter 12.1 mm
Bending radius 100 mm
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
