83181268 | murrplastik

Protective hose, inside Ø 46.3 mm, outside Ø 54 mm, BR 102 mm, PA, black, 83181268

Order No.: 47P0457
EAN: 4045005072207
MPN:
83181268
EW-PRF M50/P48 SCHWARZ
Series: EW-PRF

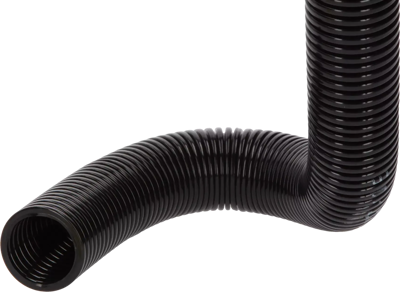

83181268 murrplastik Protective Tubes Image 1
83181268 murrplastik Protective Tubes Image 2
Image may differ
Unit Price (€ / mtr.)
19.278 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
481.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 mtr.
19.278 €

Cable protection conduit, 83181268, murrplastik

The cable protection conduit is made of specially modified polyamide 12. The material is halogen-, phosphor-, and cadmium-free. The conduit is suitable for dynamic applications involving medium to high mechanical loads. The EW-PRF cable protection conduit is used both in robotics engineering and in the aviation industry.

Features

  • High flexibility
  • Excellent impact strength
  • Excellent self-extinguishing properties
  • Very low levels of smoke gas
Technical specifications
Filter Property Value
Material PA
max. operating temperature 105 °C
Nominal width 48 mm
Outer diameter 54 mm
min. operating temperature -40 °C
Inner diameter 46.3 mm
Bending radius 102 mm
Colour black
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
