83163662 | murrplastik

Protective hose, inside Ø 35 mm, outside Ø 42.4 mm, BR 60 mm, PA, black, 83163662

Order No.: 47P0379
EAN: 4045005265364
MPN:
83163662
EW-PA-EX M40/P36 SCHWARZ
Series: EW-PA-EX

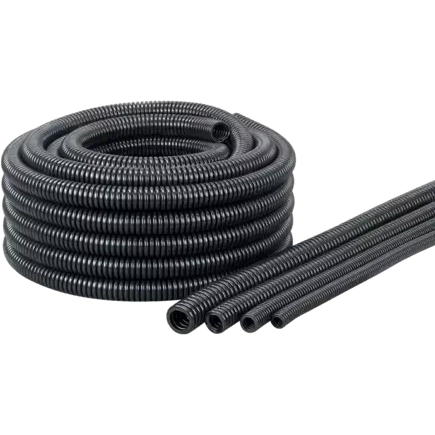

83163662 murrplastik Protective Tubes Image 1
83163662 murrplastik Protective Tubes Image 2
Image may differ
Unit Price (€ / mtr.)
25.2875 € *
Available: 0 mtr.
Leadtime: 1 Week **
Total Price:
632.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 mtr.
25.2875 €

Cable protection conduit, 83163662, murrplastik

The cable protection conduit is made of specially modified polyamide 12 with a high discharge capacity. The material is halogen-, phosphor-, and cadmium-free. The cable protection conduit meets the electrostatic requirements for conductive materials when earthed, while also offering outstanding flexibility. With appropriate earthing, it can be used in dust explosion hazardous areas of Zone 20, 21, and 22, as well as in gas explosion hazardous areas of Zone 0, 1, and 2 (independent of the explosion group of the existing gas). These properties make the conduit the perfect choice for industrial handling systems, robotics applications, and all areas where antistatic (ESD protection) equipment is required—such as mining, refineries, and the chemical industry.

Technical specifications
Colour black
Outer diameter 42.4 mm
Bending radius 60 mm
min. operating temperature -40 °C
Material PA
max. operating temperature 110 °C
Inner diameter 35 mm
Nominal width 36 mm
Logistics
Country of origin DE
Customs tariff number 39173200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
