83141022 | murrplastik
Protective hose, inside Ø 46.5 mm, outside Ø 55.5 mm, BR 208 mm, steel, galvanized/PA, gray, 83141022
NCNR (non cancelable / non returnable)
Unit Price (€ / mtr.)
44.7797 € *
Standard delivery time from the manufacturer is: 1 Week

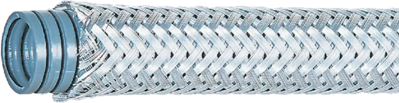

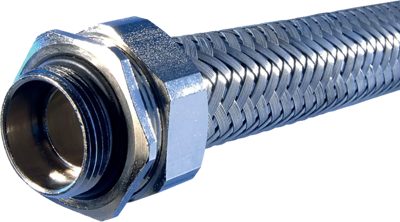

Cable protection conduit, 83141022, murrplastik
The EW-PAP cable protection conduit is made of specially modified polyamide 6 and coated with a galvanised steel wire. The materials are halogen, phosphor and cadmium-free. The EW-PAP cable protection conduit is characterised by excellent crush resistance and very good thermal and mechanical protection.
The conduit is used in mechanical and plant engineering, for example in the area of automated welding systems or in areas exposed to hot chippings at machining centres. This cable protection conduit is also used for EMC applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 46.5 mm | |
| Outer diameter | 55.5 mm | |
| Bending radius | 208 mm | |
| Material | steel, galvanized/PA | |
| Colour | gray | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 25 meters |
| Customs tariff number | 39173900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
