83141018 | murrplastik
Protective hose, inside Ø 27.5 mm, outside Ø 35.5 mm, BR 118 mm, steel, galvanized/PA, gray, 83141018
NCNR (non cancelable / non returnable)
Unit Price (€ / mtr.)
21.5152 € *
Standard delivery time from the manufacturer is: 1 Week
Cable protection conduit, 83141018, murrplastik

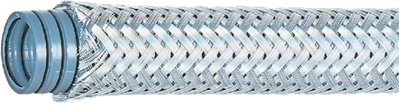

The EW-PAP cable protection conduit is made of specially modified polyamide 6 and coated with a galvanised steel wire. The materials are halogen, phosphor and cadmium-free. The EW-PAP cable protection conduit is characterised by excellent crush resistance and very good thermal and mechanical protection.
The conduit is used in mechanical and plant engineering, for example in the area of automated welding systems or in areas exposed to hot chippings at machining centres. This cable protection conduit is also used for EMC applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 27.5 mm | |
| Outer diameter | 35.5 mm | |
| Bending radius | 118 mm | |
| Material | steel, galvanized/PA | |
| Colour | gray | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173900 |
| Country of origin | DE |
| Original Packaging | Reel with 25 meters |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
