83102224 | murrplastik

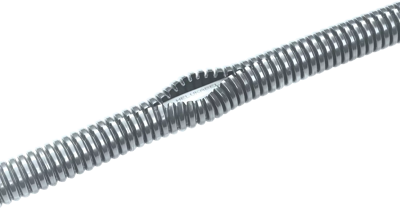

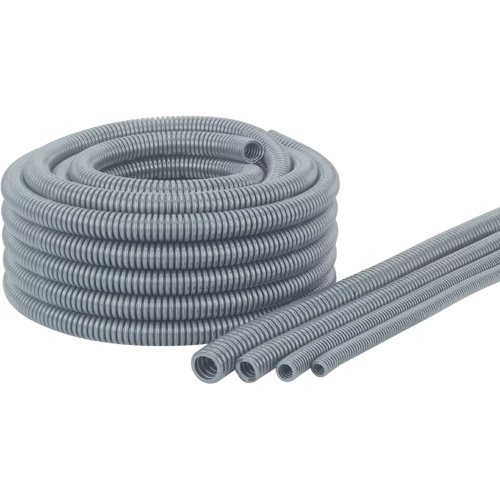

Protective hose, inside Ø 37.5 mm, outside Ø 54 mm, BR 87 mm, PE, gray, 83102224
Unit Price (€ / mtr.)
5.6406 € *
Standard delivery time from the manufacturer is: 1 Week
Cable protection conduit, 83102224, murrplastik
The EWX-LS cable protection conduit is made of specially modified polyethylene. The material is halogen, phosphor and cadmium-free. Suitable for installation of pre-assembled cables, retrofitting or repairs in mechanical and plant engineering. For static applications involving light to medium mechanical loads.
47P0205Features
- Excellent flexibility
- Less wear
- Good crush resistance
- Subsequent installation possible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PE | |
| max. operating temperature | 70 °C | |
| Nominal width | 48 mm | |
| Outer diameter | 54 mm | |
| min. operating temperature | -20 °C | |
| Inner diameter | 37.5 mm | |
| Bending radius | 87 mm | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 25 meters |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
