83101822 | murrplastik
Protective hose, inside Ø 47.5 mm, outside Ø 53.3 mm, BR 95 mm, PE, light gray, 83101822
Unit Price (€ / mtr.)
6.9139 € *
Standard delivery time from the manufacturer is: 1 Week

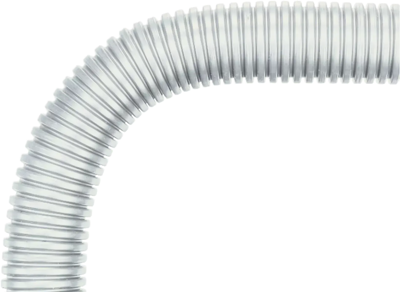

Cable protection conduit, 83101822, murrplastik
The EWS/F cable protection conduit is made of specially modified polyethylene. The material is halogen, phosphor and cadmium-free. The self-extinguishing EWS/F cable protection conduit is characterised by excellent flexibility, flexural fatigue strength and by its special colouration of RAL 7035 light grey.
47P0195Applications
- Plant engineering
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PE | |
| Colour | light gray | |
| Inner diameter | 47.5 mm | |
| min. operating temperature | -20 °C | |
| Nominal width | 48 mm | |
| Outer diameter | 53.3 mm | |
| Bending radius | 95 mm | |
| max. operating temperature | 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | DE |
| Original Packaging | Reel with 25 meters |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
