83101418 | murrplastik

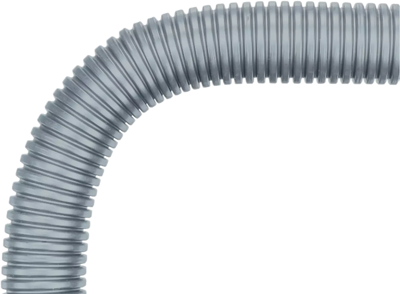

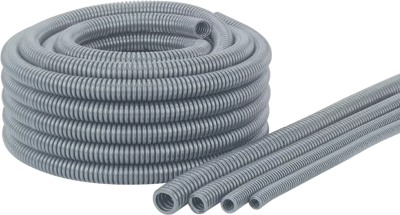

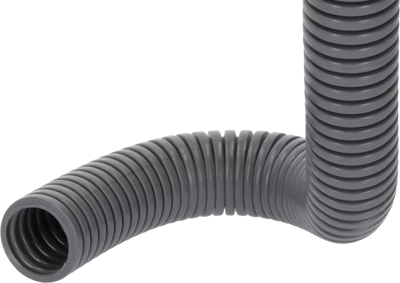

Protective hose, inside Ø 27.8 mm, outside Ø 34.3 mm, BR 75 mm, PE, gray, 83101418
Unit Price (€ / mtr.)
3.4986 € *
Standard delivery time from the manufacturer is: 1 Week
Cable protection conduit, 83101418, murrplastik
The EWF cable protection conduit is made of specially modified polyethylene. The material is halogen, phosphor and cadmium-free. The self-extinguishing EWF cable protection conduit is characterised by excellent flexibility and good flexural fatigue strength.
47P0185Applications
- Plant engineering
- Mechanical engineering
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PE | |
| max. operating temperature | 90 °C | |
| Nominal width | 29 mm | |
| Outer diameter | 34.3 mm | |
| min. operating temperature | -20 °C | |
| Inner diameter | 27.8 mm | |
| Bending radius | 75 mm | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 25 meters |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
