83101412 | murrplastik

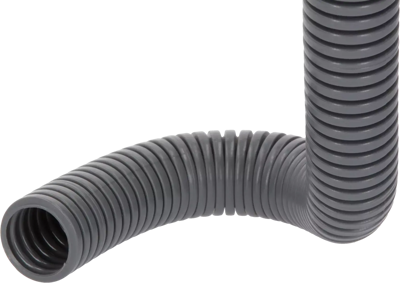

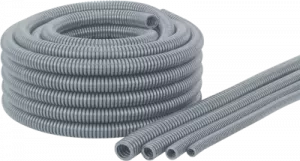

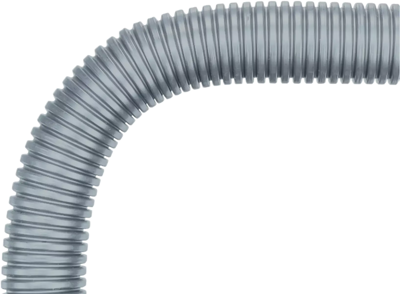

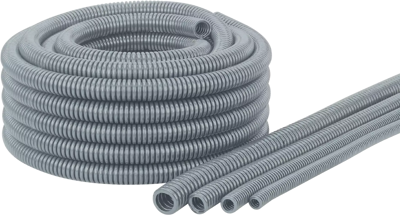

Protective hose, inside Ø 11.6 mm, outside Ø 15.7 mm, BR 40 mm, PE, gray, 83101412
Unit Price (€ / mtr.)
1.4637 € *
Standard delivery time from the manufacturer is: 1 Week
Cable protection conduit, 83101412, murrplastik
The EWF cable protection conduit is made of specially modified polyethylene. The material is halogen, phosphor and cadmium-free. The self-extinguishing EWF cable protection conduit is characterised by excellent flexibility and good flexural fatigue strength.
47P0185Applications
- Plant engineering
- Mechanical engineering
- Control cabinet construction
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PE | |
| max. operating temperature | 90 °C | |
| Nominal width | 12 mm | |
| Outer diameter | 15.7 mm | |
| min. operating temperature | -20 °C | |
| Inner diameter | 11.6 mm | |
| Bending radius | 40 mm | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 50 meters |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
