83605022 | murrplastik

Hose screw fitting, M63, PA, IP54, gray, 83605022

Order No.: 47P1010
EAN: 4045005195104
MPN:
83605022
WSV M63X1,5/48 GRAU
Series: WSV 90°

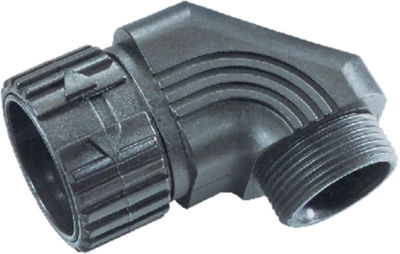

83605022 murrplastik Hose Fittings Image 1
83605022 murrplastik Hose Fittings Image 2
Image may differ
Unit Price (€ / pc.)
14.2800 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
142.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
14.2800 €

Conduit fitting, 83605022, murrplastik

The WSV conduit fittings are made of specially modified polyamide 6. The materials are halogen, phosphor and cadmium-free.

Features

  • Cost reduction through simple assembly work, insert conduit and done
  • Simple opening mechanism
  • Tightness of IP 54 for static and dynamic application, IP 65 with additional mounting of an O-ring
Technical specifications
max. operating temperature 110 °C
Colour gray
Material PA
Thread size M63
min. operating temperature -40 °C
Degree of protection (IP) IP54
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
