83605016 | murrplastik

Hose screw fitting, M32, PA, IP54, gray, 83605016

Order No.: 47P1007
EAN: 4045005023841
MPN:
83605016
WSV M32X1,5/21 GRAU
Series: WSV 90°

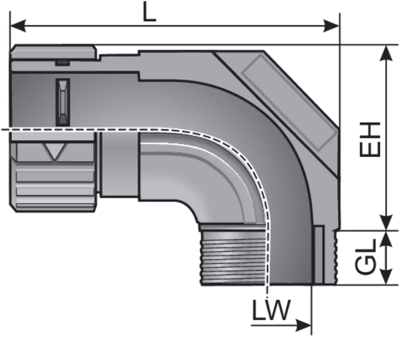

83605016 murrplastik Hose Fittings Image 1

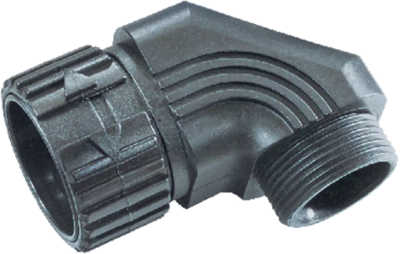

83605016 murrplastik Hose Fittings Image 2
Image may differ
Unit Price (€ / pc.)
3.6295 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
90.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
3.6295 €

Conduit fitting, 83605016, murrplastik

The WSV conduit fittings are made of specially modified polyamide 6. The materials are halogen, phosphor and cadmium-free.

Features

  • Cost reduction through simple assembly work, insert conduit and done
  • Simple opening mechanism
  • Tightness of IP 54 for static and dynamic application, IP 65 with additional mounting of an O-ring
Technical specifications
max. operating temperature 110 °C
Colour gray
Material PA
Thread size M32
min. operating temperature -40 °C
Degree of protection (IP) IP54
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
