83605012 | murrplastik

Hose screw fitting, M20, PA, IP54, gray, 83605012

Order No.: 47P1005
EAN: 4045005313928
MPN:
83605012
WSV M20X1,5/11 GRAU
Series: WSV 90°

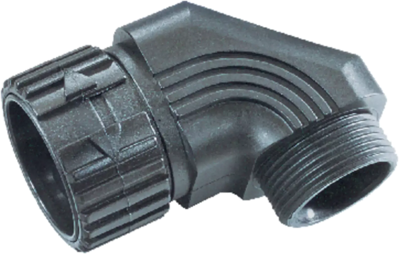

83605012 murrplastik Hose Fittings Image 1
83605012 murrplastik Hose Fittings Image 2
Image may differ
Unit Price (€ / pc.)
2.5347 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
126.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
2.5347 €

Conduit fitting, 83605012, murrplastik

The WSV conduit fittings are made of specially modified polyamide 6. The materials are halogen, phosphor and cadmium-free.

Features

  • Cost reduction through simple assembly work, insert conduit and done
  • Simple opening mechanism
  • Tightness of IP 54 for static and dynamic application, IP 65 with additional mounting of an O-ring
Technical specifications
max. operating temperature 110 °C
Colour gray
Material PA
Thread size M20
min. operating temperature -40 °C
Degree of protection (IP) IP54
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
