83602466 | murrplastik
Hose screw fitting, M40, PA, IP54, black, (L) 54 mm, 83602466
Unit Price (€ / pc.)
4.3673 € *
Standard delivery time from the manufacturer is: 1 Week

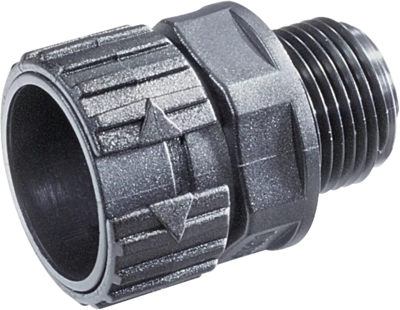

Conduit fitting, 83602466, murrplastik
The MSV conduit fittings are made of specially modified polyamide 6. The materials are halogen, phosphor and cadmium-free.
Features
- Cost reduction through simple assembly work, insert conduit and done
- Simple opening mechanism
- Tightness of IP 54 for static and dynamic application, IP 65 with additional mounting of an O-ring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 110 °C | |
| Length | 54 mm | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Material | PA | |
| Thread size | M40 | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39174000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
