83602423 | murrplastik

Hose screw fitting, M32, PA, IP54, gray, (L) 46 mm, 83602423

Order No.: 47P0969
EAN: 4045005026767
MPN:
83602423
MSV M32X1,5/21 GRAU
Series: MSV

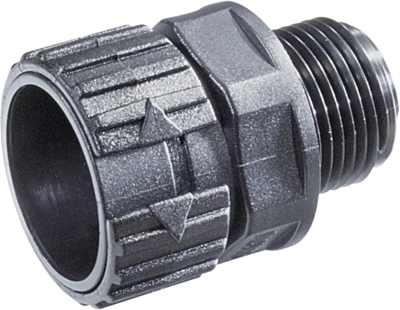

83602423 murrplastik Hose Fittings Image 1
83602423 murrplastik Hose Fittings Image 2
Image may differ
Unit Price (€ / pc.)
2.2372 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
111.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
2.2372 €

Conduit fitting, 83602423, murrplastik

The MSV conduit fittings are made of specially modified polyamide 6. The materials are halogen, phosphor and cadmium-free.

Features

  • Cost reduction through simple assembly work, insert conduit and done
  • Simple opening mechanism
  • Tightness of IP 54 for static and dynamic application, IP 65 with additional mounting of an O-ring
Technical specifications
max. operating temperature 110 °C
Length 46 mm
Colour gray
Material PA
Thread size M32
min. operating temperature -40 °C
Degree of protection (IP) IP54
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
