83601064 | murrplastik

Hose screw fitting, PG36, PA, IP54, black, (L) 53 mm, 83601064

Order No.: 47P0959
EAN: 4045005271617
MPN:
83601064
MSV PG 36 SCHWARZ
Series: MSV

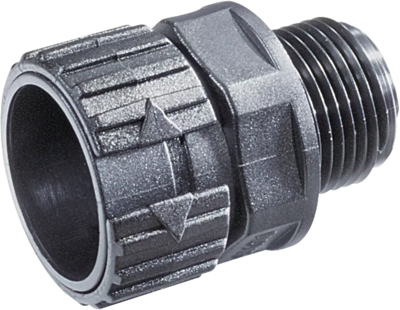

83601064 murrplastik Hose Fittings Image 1

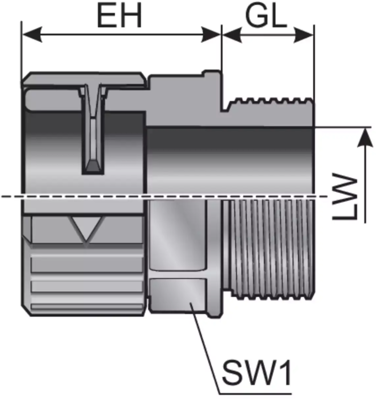

83601064 murrplastik Hose Fittings Image 2
Image may differ
Unit Price (€ / pc.)
4.3673 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
43.67 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
4.3673 €

Conduit fitting, 83601064, murrplastik

The MSV conduit fittings are made of specially modified polyamide 6. The materials are halogen, phosphor and cadmium-free.

Features

  • Cost reduction through simple assembly work, insert conduit and done
  • Simple opening mechanism
  • Tightness of IP 54 for static and dynamic application, IP 65 with additional mounting of an O-ring
Technical specifications
max. operating temperature 110 °C
Length 53 mm
Colour black
Material PA
Thread size PG36
min. operating temperature -40 °C
Degree of protection (IP) IP54
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
