83581860 | murrplastik
Straight conduit and cable gland, M32, PA/NBR, IP65, black, (L) 80 mm, 83581860
Unit Price (€ / pc.)
6.7235 € *
Standard delivery time from the manufacturer is: 1 Week

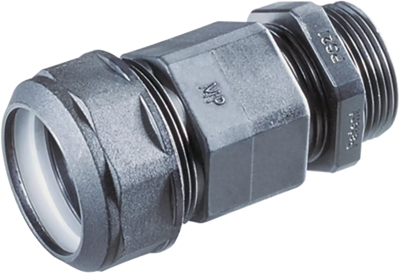

Conduit and cable fitting, 83581860, murrplastik
The CSKV conduit and cable fitting is a combination of our proven WKK cable fitting and the EH conduit fitting. The fitting is made of specially modified polyamide. The material is halogen-, phosphor-, and cadmium-free. Clamping range: 18-25 mm.
Features
- Tightness of IP65 for static and dynamic application
- Integrated clamping ring ensures high tear-out strength
- Optimum strain relief for the cable due to iris-shaped lamellae
Technical specifications
| Length | 80 mm | |
| Thread size | M32 | |
| Material | PA/NBR | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 110 °C | |
| Colour | black | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Customs tariff number | 39174000 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
