83551252 | murrplastik
45° straight conduit and cable gland, M16, PA/brass, nickel plated, IP68, black, (L) 69 mm, 83551252
Unit Price (€ / pc.)
34.5219 € *
Available: 0 pcs.
Leadtime: 1 Week **

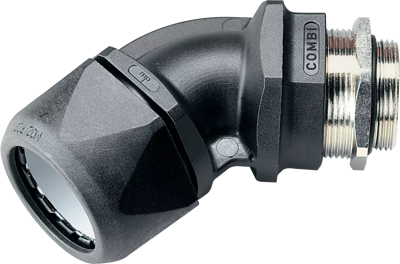

Conduit and cable fitting, 83551252, murrplastik
The CVW 45° EMV combined conduit and cable fitting is made of specially modified polyamide 6, thermoplastic elastomer, and nickel-plated brass. The materials are halogen-, phosphor-, and cadmium-free.
Features
- Quick assembly, insert conduit, screw upper part tight, done
- Resistant to vibration due to lockable cap nut
- Clamping along entire circumference, ensuring maximum tensile strength
- Optimum strain relief for the cable
- High level of tightness at IP 68/69K to 6 bar without any add-on components to EN 60529
Technical specifications
| Colour | schwarz | |
| Thread size | M16 | |
| Length | 69 mm | |
| Material | PA/Messing, vernickelt | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
