83531458 | murrplastik

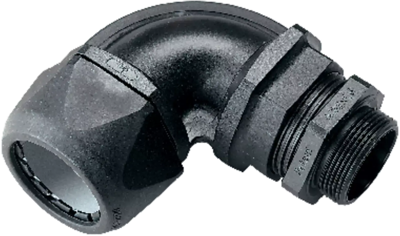

90° straight conduit and cable gland, M25, PA, IP68, black, (L) 87 mm, 83531458

Order No.: 47P0800
EAN: 4045005237378
MPN:
83531458
CVW90 M25-K SCHWARZ
Series: CVW 90°
83531458 murrplastik Hose Fittings
Image may differ
Unit Price (€ / pc.)
10.9599 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
274.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
10.9599 €

Conduit and cable fitting, 83531458, murrplastik

The CVW 90° combined conduit and cable fitting is made of specially modified polyamide 6 and thermoplastic elastomer. The materials are halogen-, phosphor-, and cadmium-free. Clamping range: 13-18 mm.

Features

  • Quick assembly, insert conduit, screw upper part tight, done
  • Resistant to vibration due to lockable cap nut
  • Clamping along entire circumference, ensuring maximum tensile strength
  • Optimum strain relief for the cable
  • High level of tightness at IP 68/69K to 6 bar without any add-on components to EN 60529
Technical specifications
max. operating temperature 110 °C
Thread size M25
min. operating temperature -40 °C
Colour black
Degree of protection (IP) IP68
Length 87 mm
Material PA
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
