83531260 | murrplastik

45° straight conduit and cable gland, M32, PA, IP68, black, (L) 113 mm, 83531260

Order No.: 47P0794
EAN: 4045005027832
MPN:
83531260
CVW45 M32-K SCHWARZ
Series: CVW 45°
83531260 murrplastik Hose Fittings
Image may differ
Unit Price (€ / pc.)
14.4942 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
362.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
14.4942 €

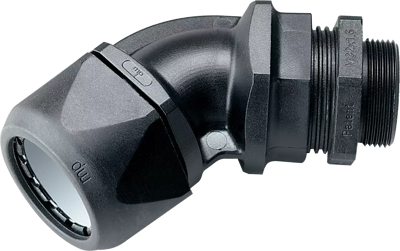

Conduit and cable fitting, 83531260, murrplastik

The CVW 45° combined conduit and cable fitting is made of specially modified polyamide 6 and thermoplastic elastomer. The materials are halogen-, phosphor-, and cadmium-free. Clamping range: 18-25 mm.

Features

  • Quick assembly, insert conduit, screw upper part tight, done
  • Resistant to vibration due to lockable cap nut
  • Clamping along entire circumference, ensuring maximum tensile strength
  • Optimum strain relief for the cable
  • High level of tightness at IP 68/69K to 6 bar without any add-on components to EN 60529
Technical specifications
max. operating temperature 110 °C
Thread size M32
min. operating temperature -40 °C
Colour black
Degree of protection (IP) IP68
Length 113 mm
Material PA
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
