83511020 | murrplastik

Hose screw fitting, M32, PA, IP68 (6bar), gray, (L) 60 mm, 83511020

Order No.: 47P0574
EAN: 4045005304377
MPN:
83511020
VG M32-K GRAU
Series: VG

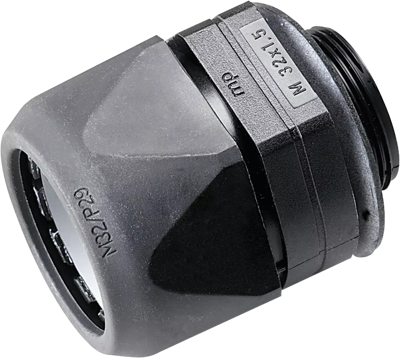

83511020 murrplastik Hose Fittings Image 1

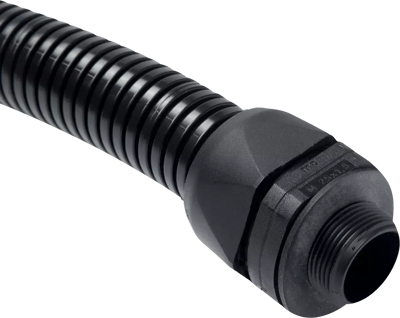

83511020 murrplastik Hose Fittings Image 2
Image may differ
Unit Price (€ / pc.)
5.4026 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
135.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
5.4026 €

Conduit fitting, 83511020, murrplastik

The VG conduit fitting is made of specially modified polyamide 6 and thermoplastic elastomer. The material is halogen-, phosphor-, and cadmium-free.

Features

  • Quick assembly, insert conduit, screw upper part tight, done
  • No parts can get lost, delivered completely assembled
  • Resistant to vibration due to lockable cap nut
  • Clamping along entire circumference, ensuring maximum tensile strength
  • High level of tightness at IP 68/69K to 6 bar and without any add-on components to EN 60529
Technical specifications
Colour gray
Degree of protection (IP) IP68 (6bar)
Length 60 mm
min. operating temperature -40 °C
Material PA
max. operating temperature 110 °C
Thread size M32
Logistics
Country of origin DE
Customs tariff number 39174000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
