87841080 | murrplastik

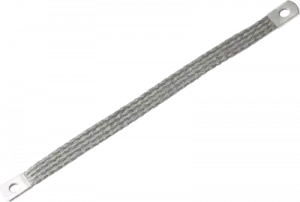

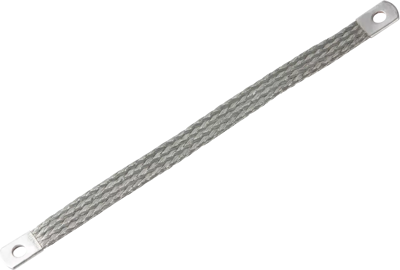

Grounding strap, copper, 10 mm², (L x W) 200 x 14.1 mm, hole Ø M6, 87841080
Unit Price (€ / pc.)
3.8437 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
3.84 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8437 €
10 pcs.
3.6057 €
50 pcs.
3.3558 €
100 pcs.
3.1178 €
*incl. VAT plus shipping costs
Subject to prior sale
Ribbon earthing cable, 87841080, murrplastik
The ribbon earthing cable is designed to meet the demands for low bleeder resistance at high frequencies. This product features excellent discharge of high-frequency noise current and very small transient resistance.
47P0156 Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper | |
| Version | grounding strap | |
| Length | 200 mm | |
| Cable cross-section | 10 mm² | |
| Hole size | M6 | |
| Width | 14.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74130000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
