83641454 | murrplastik

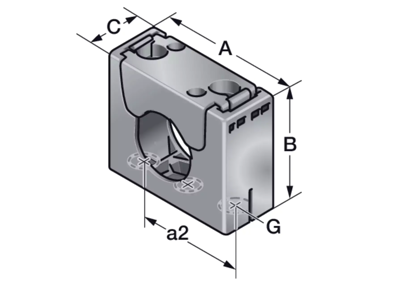

Tubing holders, M32/P29, (L x W x H) 85 x 30 x 66 mm, PA, black, for Murrflex corrugated pipe profiles, 83641454
Unit Price (€ / pc.)
11.6382 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11.64 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6382 €
5 pcs.
10.9480 €
15 pcs.
10.6029 €
30 pcs.
9.9246 €
60 pcs.
9.2344 €
*incl. VAT plus shipping costs
Subject to prior sale
Tube holder, 83641454, murrplastik

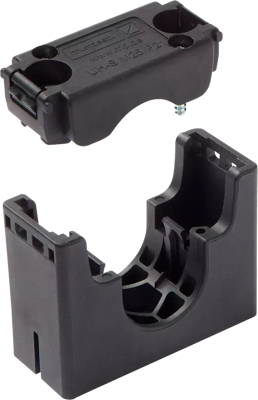

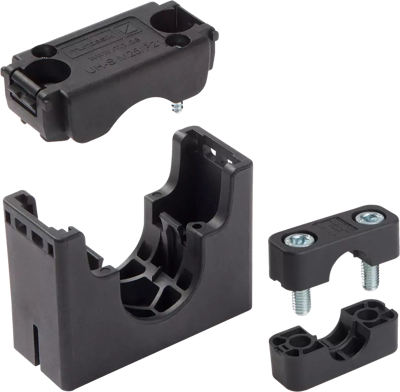

The stable UH-S holder is made of specially modified polyamide 6. The material is halogen, phosphor and cadmium-free. The UH-S holders, which can be strung together and stacked, are ideally suited to applications with special requirements in terms of stability. Equipped with the appropriate cable protection conduits, the UH-S holders offer excellent performance in terms of stability, flexibility of use and durability – even under high dynamic loads.
Features
- Safe closing of the holder with no tools required
- Machine safe, can only be opened with a tool
- The upper part can also be secured with screws if necessary
- Lower part can be pre-assembled
- Suitable for all Murrflex corrugated conduit profiles
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 110 °C | |
| Length | 85 mm | |
| min. operating temperature | -40 °C | |
| Height | 66 mm | |
| Colour | black | |
| Material | PA | |
| Width | 30 mm | |
| Suitable for | Murrflex corrugated pipe profiles | |
| Product type | tubing holders | |
| Version | M32/P29 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
