Tubing holders, M40/P36, (L x W x H) 52.45 x 60.4 x 59.1 mm, PC, black, for Murrflex corrugated pipe profiles, 83641026

Order No.: 47P1183
EAN: 4045005019172
MPN:
83641026
USH P36 SCHWARZ
Series: USH
83641026 murrplastik Cable Management Accessories Image 1
83641026 murrplastik Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
4.1769 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
208.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
4.1769 €

Tube holder, 83641026, murrplastik

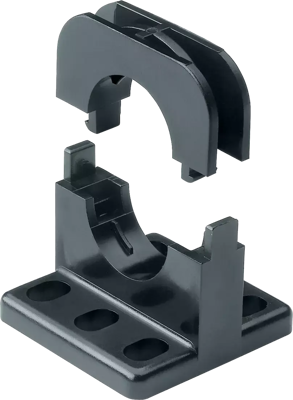

The USH holder consists of an upper and a lower part made of specially modified polycarbonate. The material is halogen, phosphor and cadmium-free. The holder is used as a quick and easy connection between control cabinet and door.

Features

  • Various fastening possibilities
  • Protective conduits can still be rotated in the holder
  • Pre-assembly of lower part possible
  • Suitable for all Murrflex corrugated conduit profiles
Technical specifications
Product type tubing holders
Colour black
Material PC
min. operating temperature -30 °C
max. operating temperature 100 °C
Suitable for Murrflex corrugated pipe profiles
Height 59.1 mm
Length 52.45 mm
Width 60.4 mm
Version M40/P36
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
